| Nombre De La Marca: | VIIPLUS |
| Número De Modelo: | GLIDLAGER |
| Cuota De Producción: | negociable |
| Precio: | Negociable |
| Condiciones De Pago: | T/T |
| Capacidad De Suministro: | los bujes de bronce de la manga, China, fabricantes, proveedores, fábrica, uno mismo al por mayor, m |

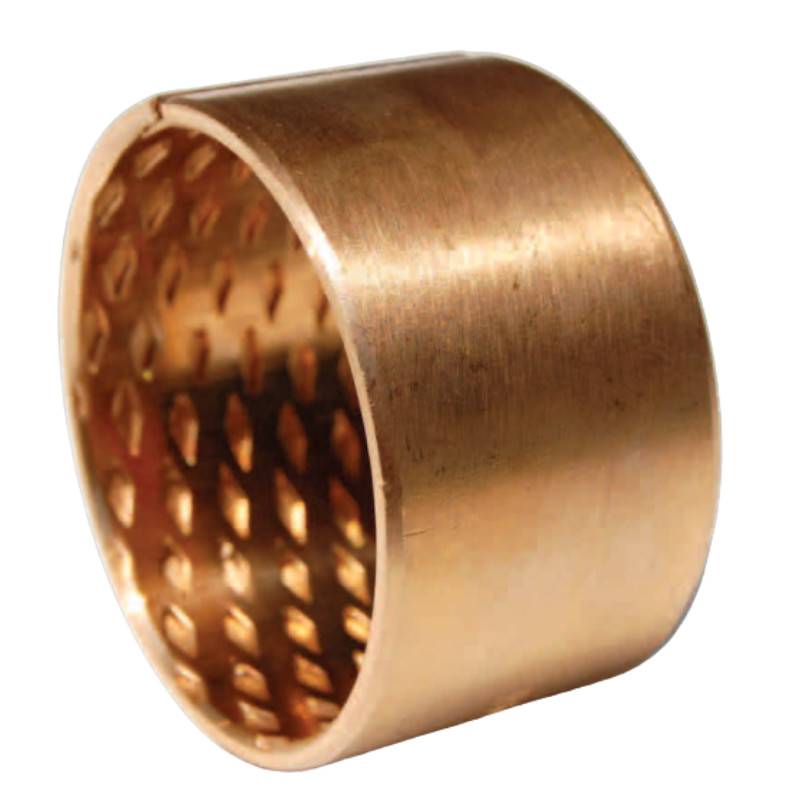

Los cojinetes cilíndricos de bronce WB900 y WB902 de BMZ son componentes diseñados con precisión para proporcionar un rendimiento superior en diversas aplicaciones industriales. Fabricados con material de bronce de alta calidad, estos cojinetes ofrecen una excelente resistencia al desgaste, durabilidad y capacidad de carga. La forma cilíndrica garantiza una rotación suave y una fricción reducida, mientras que las propiedades autolubricantes mejoran aún más la eficiencia operativa. Los modelos WB900 y WB902 están diseñados específicamente para cumplir con diferentes requisitos de rendimiento, lo que permite a los clientes elegir la opción más adecuada para su aplicación específica.

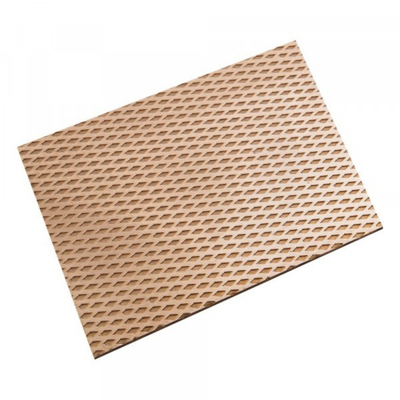

Casquillos de bronce con depósitos de grasa (BRO-MET, FB090, BRM10, WB800)
Los manguitos de bronce con depósito de grasa (BRO-MET) minimizan el riesgo de rotura de una pieza por falta de grasa. Gracias a este diseño, se alarga la vida útil del manguito, lo que significa que protegerá los mecanismos de los equipos que rozan contra el sobrecalentamiento y el fallo prematuro.
Los manguitos de bronce son resistentes a los factores ambientales. Pueden utilizarse en máquinas y equipos de tipo industrial. Su funcionamiento se acompaña de bajos niveles de ruido.
Nuestro catálogo ofrece artículos de bronce con un diámetro interior a partir de 10 mm y un diámetro exterior a partir de 12 mm. La forma es cilíndrica. En la producción se ha utilizado una aleación de bronce que cumple los requisitos de la norma internacional DIN 17662.
Buje BUS77792
Piezas de recambio de BRONCE SINTERIZADO AUTOLUBRICANTE para maquinaria minera.TABLA DE TAMAÑOS DE COJINETES DE BRONCE ENVUELTO.pdf
| Arte. Nr. | d/DxL | Arte. Nr. | d/DxL | Arte. Nr. | d/DxL | ||
| BMz1720 | 17/19x20 | BMZ2528 | 25/28 x 28 | ||||
| BMZ1010 | 10/12 x 10 | BMZ1725 | 17/19x25 | BMZ2530 | 25/28x30 | ||
| BMZ1012 | 10/12 x 12 | BMz1808 | 18/20x8 | BMZ2532 | 25/28x32 | ||
| BMZ1015 | 10/12 x 15 | BMZ1810 | 18/20x10 | BMZ2535 | 25/28x35 | ||
| BMZ1020 | 10/12 x 20 | BMZ1812 | 18/20x12 | BMZ2540 | 25/28x40 | ||
| BMZ1108 | 11/13 x 8 | BMZ1815 | 18/20x15 | BMZ2550 | 25/28x50 | ||
| BMZ1109 | 11/13 x 9 | ||||||
| BMZ1110 | 11/13 x 10 | BMz1820 | 18/20x20 | BMZ2560 | 25/28x60 | ||
| BMZ1112 | 11/13 x 12 | ||||||
| BMZ1206 | 12/14 x 6 | BMZ1825 | 18/20x25 | BMZ2610 | 26/30x10 | ||
| BMZ1208 | 12/14 x 8 | BMZ1830 | 18/20x30 | BMZ2612 | 26/30x12 | ||
| BMZ1210 | 12/14 x 10 | BMZ 2008a | 20/22x8 | BMZ2615 | 26/30x15 | ||
| BMZ1212 | 12/14 x 12 | BMZ 2010a | 20/22x10 | BMZ2620 | 26/30x20 | ||
| BMZ1214 | 12/14 x 14 | BMZ 2012a | 20/22x12 | BMZ2625 | 26/30x25 | ||
| BMZ1215 | 12/14 x 15 | BMZ 2015a | 20/22x15 | BMZ2630 | 26/30x30 | ||
| BMZ1216 | 12/14 x 16 | BMZ 2020a | 20/22x20 | BMZ2635 | 26/30x35 | ||
| BMZ1220 | 12/14 x 20 | BMZ2025a | 20/22x25 | BMZ2640 | 26/30x40 | ||
| BMZ1225 | 12/14 x 25 | BMZ2030a | 20/22x30 | BMZ2650 | 26/30x50 | ||
| BMZ1308 | 13/15 x 8 | BMZ2035a | 20/22x35 | BMZ2810a | 28/31x10 | ||
| BMZ1309 | 13/15 x 9 | BMZ2040a | 20/22x40 | BMZ2812a | 28/31x12 | ||
| BMZ1310 | 13/15 x 10 | Ministerio de Defensa 2008b | 20/23x8 | BMZ2815a | 28/31x15 | ||
| BMZ1312 | 13/15 x 12 | Ministerio de Defensa 2010b | 20/23x10 | BMZ2820a | 28/31x20 | ||
| BMZ1315 | 13/15 x 15 | BMZ2012b | 20/23x12 | BMZ2825a | 28/31x25 | ||
| BMZ1410 | 14/16 x 10 | Ministerio de Defensa 2015b | 20/23x15 | BMZ2830a | 28/31x30 | ||
| BMZ1412 | 14/16 x 12 | BMZ 2020b | 20/23x20 | BMZ2832a | 28/31x32 | ||
| BMZ1415 | 14/16 x 15 | BMZ2025b | 20/23x25 | BMZ2835a | 28/31x35 | ||
| BMZ1420 | 14/16 x 20 | BMZ2030b | 20/23x30 | BMZ2840a | 28/31x40 | ||
| BMZ1422 | 14/16 x 22 | BMZ2035b | 20/23x35 | BMZ2810b | 28/32 x 10 | ||
| BMZ1425 | 14/16 x 25 | BMZ2040b | 20/23x40 | BMZ2812b | 28/32x12 | ||
| BMZ1508 | 15/17x8 | BMZ2210 | 22/25x10 | BMZ2815b | 28/32 x 15 | ||
| BMZ1510 | 15/17 x 10 | BMZ2212 | 22/25x12 | BMZ2820b | 28/32x20 | ||
| BMZ1512 | 15/17 x 12 | BMZ2215 | 22/25x15 | BMZ2825b | 28/32x25 | ||
| BMZ1515 | 15/17x15 | BMZ2220 | 22/25x20 | BMZ2830b | 28/32x30 | ||
| BMZ1518 | 15/17 x 18 | BMZ2225 | 22/25x25 | BMZ2832b | 28/32x32 | ||
| BMZ1520 | 15/17x20 | BMZ2230 | 22/25x30 | BMZ2835b | 28/32x35 | ||
| BMZ1525 | 15/17 x 25 | BMZ2235 | 22/25x35 | BMZ2840b | 28/32x40 | ||
| BMZ1608 | 16/18x8 | BMZ2238 | 22/25x38 | BMZ3010 | 30/34 x 10 | ||
| BMZ1610 | 16/18x10 | BMZ2240 | 22/25x40 | BMZ3012 | 30/34 x 12 | ||
| BMZ1612 | 16/18x12 | BMZ2245 | 22/25x45 | BMZ3015 | 30/34 x 15 | ||
| BMZ1615 | 16/18x15 | BMZ2250 | 22/25x50 | BMZ3020 | 30/34x20 | ||
| BMZ1618 | 16/18x18 | BMZ2410a | 24/27x10 | BMZ3025 | 30/34x25 | ||
| BMZ1620 | 16/18x20 | BMZ2412a | 24/27x12 | BMZ3028 | 30/34 x 28 | ||
| BMZ1625 | 16/18x25 | BMZ2415a | 24/27x15 | BMZ3030 | 30/34x30 | ||
| BMZ1708 | 17/19x8 | BMZ2420a | 24/27x20 | BMZ3032 | 30/34x32 | ||
| BMZ1710 | 17/19 x 10 | BMZ2425a | 24/27x25 | BMZ3035 | 30/34x35 | ||
| BMZ1712 | 17/19 x 12 | BMZ2428a | 24/27x28 | BMZ3038 | 30/34 x 38 | ||
| BM71715 | 17/19x15 | BMZ2430a | 24/27x30 | BMZ3040 | 30/34x40 | ||
| BMZ1718 | 17/19x18 | BMZ2432a | 24 x 27 x 32 | BMZ3045 | 30/34x45 | ||
| BMZ2435a | 24/27x35 | BMZ3050 | 30/34x50 | ||||
| BMZ2438a | 24/27x38 | BMZ3210 | 32/36 x 10 | ||||
| BMZ2440a | 24/27x40 | BMZ3212 | 32/36x12 | ||||
| BMZ2450a | 24/27x50 | BMZ3215 | 32/36 x 15 | ||||
| BMZ2410b | 24/28x10 | BMZ3218 | 32/36 x 18 | ||||
| BMZ2412b | 24/28x12 | BMZ3220 | 32/36x20 | ||||
| BMZ2415b | 24/28x15 | BMZ3225 | 32/36x25 | ||||
| BMZ2420b | 24/28x20 | BMZ3230 | 32/36x30 | ||||
| BMZ2425b | 24/28x25 | BMZ3235 | 32/36x35 | ||||
| BMZ2428b | 24/28x28 | BMZ3240 | 32/36x40 | ||||
| BMZ2430b | 24/28x30 | BMZ3245 | 32/36x45 | ||||
| BMZ2432b | 24/28x32 | BMZ3250 | 32/36x50 | ||||
| BMZ2435b | 24/28x35 | BMZ3410 | 34/38x10 | ||||
| BM72438b | 24/28x38 | BMZ3412 | 34/38x12 | ||||
| BMZ2440b | 24/28x40 | BMZ3415 | 34/38x15 | ||||
| BMZ2450b | 24/28x50 | BMZ3420 | 34/38x20 | ||||
| BMZ2510 | 25/28x10 | BMZ3425 | 34/38x25 | ||||
| BMZ2512 | 25/28x12 | BMZ3430 | 34/38x30 | ||||
| BMZ2515 | 25/28x15 | BMZ3435 | 34/38x35 | ||||
| BMZ2520 | 25/28x20 | BM730 | 34/38x0 | ||||
| BMZ2525 | 25/28x25 | BMZ3445 | 34/38x45 | ||||
| Arte. Nr. | d/DxL | Arte. Nr. | d/DxL | Arte. Nr. | d/DxL |
| BMZ3510 | 35/39x10 | BMZ4530 | 45/50x30 | BMZ7560 | 75/80x60 |
| BMZ3512 | 35/39x12 | BMZ4535 | 45/50x35 | BMZ7570 | 75/80x70 |
| BMZ3515 | 35/39x15 | BMZ4540 | 45/50x40 | BMZ7580 | 75/80x80 |
| BMZ3520 | 35/39x20 | BMZ4545 | 45/50x45 | BMZ7590 | 75/80x90 |
| BMZ3525 | 35/39x25 | BMZ4550 | 45/50x50 | BMZ8030 | 80/85x30 |
| BMZ3530 | 35/39x30 | BMZ4555 | 45/50x55 | BMZ8040 | 80/85x40 |
| BMZ3535 | 35/39x35 | BMZ4560 | 45/50x60 | BMZ8050 | 80/85x50 |
| BMZ3540 | 35/39x40 | BMZ5015 | 50/55x15 | BMZ8060 | 80/85x60 |
| BMZ3545 | 35/39x45 | BMz5020 | 50/55x20 | BMZ8070 | 80/85x70 |
| BMZ3550 | 35/39x50 | BMZ5025 | 50/55x25 | BMZ8080 | 80/85x80 |
| BMZ3610 | 36/40x10 | BMZ5030 | 50/55x30 | BMZ8090 | 80/85x90 |
| BMZ3612 | 36/40x12 | BMZ5035 | 50/55x35 | BMZ80100 | 80/85x100 |
| BMZ3615 | 36/40x15 | BMZ5040 | 50/55x40 | BMZ8530 | 85/90x30 |
| BMZ3620 | 36/40x20 | BMZ5045 | 50/55x45 | BMZ8540 | 85/90x40 |
| BMZ3625 | 36/40x25 | BMZ5050 | 50/55x50 | BMZ8550 | 85/90x50 |
| BMZ3630 | 36/40x30 | BMZ5055 | 50/55x55 | BMZ8560 | 85/90x60 |
| BMZ3635 | 36/40x35 | BMZ5060 | 50/55x60 | BMZ8570 | 85/90x70 |
| BMZ3640 | 36/40x40 | BMZ5065 | 50/55x65 | BMZ8580 | 85/90x80 |
| BMZ3645 | 36/40x45 | BMZ5070 | 50/55x70 | BMZ8590 | 85/90x90 |
| BMZ3650 | 36/40x50 | BMZ5515 | 55/60x15 | BMZ85100 | 85/90x100 |
| BMZ3812 | 38/42x12 | BMZ5520 | 55/60x20 | BMz9030 | 90/95x30 |
| BMZ3815 | 38/42x15 | BMZ5525 | 55/60x25 | BMZ9040 | 90/95x40 |
| BMZ3820 | 38/42x20 | BMZ5530 | 55/60x30 | BMZ9050 | 90/95x50 |
| BMZ3825 | 38/42x25 | BMZ5535 | 55/60x35 | BMZ9060 | 90/95x60 |
| BMZ3830 | 38/42x30 | BMZ5540 | 55/60x40 | BMZ9070 | 90/95x70 |
| BMZ3835 | 38/42x35 | BMZ5545 | 55/60x45 | BMZ9080 | 90/95x80 |
| BMZ3840 | 38/42x40 | BMZ5550 | 55/60x50 | BMZ9090 | 90/95x90 |
| BMZ3845 | 38/42x45 | BMZ5555 | 55/60x55 | BMZ90100 | 90/95x100 |
| BMZ3850 | 38/42x50 | BMZ5560 | 55/60x60 | BMZ9530 | 95/100x30 |
| BMZ3855 | 38/42x55 | BMZ5565 | 55/60x65 | BMZ9540 | 95/100x40 |
| BMZ3860 | 38/42x60 | BMZ5570 | 55/60x70 | BMZ9550 | 95/100x50 |
| BMZ4012 | 40/44x12 | BMZ6015 | 60/65x15 | BMZ9560 | 95/100x60 |
| BMZ4015 | 40/44x15 | BMZ6020 | 60/65x20 | BMZ9570 | 95/100x70 |
| BMZ4020 | 40/44x20 | BMZ6025 | 60/65x25 | BMZ9580 | 95/100x80 |
| BMZ4025 | 40/44x25 | BMZ6030 | 60/65x30 | BMZ9590 | 95/100x90 |
| BMZ4030 | 40/4x30 | BMZ6035 | 60/65x35 | BMZ95100 | 95/100x100 |
| BMZ4035 | 40/44x35 | BMZ6040 | 60/65x40 | BMZ10030 | 100/105x30 |
| BMZ4040 | 40/44x40 | BMZ6045 | 60/65x45 | BMZ10040 | 100/105x40 |
| BMZ4045 | 40/44x45 | BMZ6050 | 60/65x50 | BMZ10050 | 100/105x50 |
| BMZ4050 | 40/44x50 | BMZ6055 | 60/65x55 | BMZ10060 | 100/105x60 |
| BMZ4055 | 40/44x55 | BMZ6060 | 60/65x60 | BMZ10070 | 100/105x70 |
| BMZ4060 | 40/44x60 | BMZ6065 | 60/65x65 | BMZ10080 | 100/105x80 |
| BMZ4212 | 42/46x12 | BMZ6070 | 60/65x70 | BMZ10090 | 100/105x90 |
| BMZ4215 | 42/46x15 | BMZ6075 | 60/65x75 | BMZ100100 | 100/105x100 |
| BMZ4220 | 42/46x20 | BMZ6080 | 60/65x80 | Número de registro BMZ 100115 | 100/105x115 |
| BMZ4225 | 42/46x25 | BMZ6085 | 60/65x85 | BMZ10550 | 105/110x50 |
| BMZ4230 | 42/46x30 | BMZ6090 | 60/65x90 | BMZ10560 | 105/110x60 |
| BMZ4235 | 42/46x35 | BMZ6515 | 65/70x15 | BMZ10570 | 105/110x70 |
| BMZ4240 | 42/46x40 | BMZ6520 | 65/70x20 | BMZ10580 | 105/110x80 |
| BMZ4245 | 42/46x45 | BMZ6530 | 65/70x30 | BMZ10590 | 105/110x90 |
| BMZ4250 | 42/46x50 | BMZ6540 | 65/70x40 | BMZ105100 | 105/11x100 |
| BMZ4255 | 42/46x55 | BMZ6550 | 65/70x50 | BMZ105115 | 105/110x115 |
| BMZ4260 | 42/46x60 | BMZ6560 | 65/70x60 | BMZ11050 | 110/115x50 |
| BMZ4412 | 44/48x12 | BMZ6570 | 65/70x70 | BMZ11060 | 110/115x60 |
| BMZ4415 | 44/48x15 | BMZ6580 | 65/70x80 | BMZ11070 | 110/115x70 |
| BMZ4420 | 44/48x20 | BMZ6590 | 65/70x90 | BMZ11080 | 110/115x80 |
| BMZ4425 | 44/48x25 | BMZ7020 | 70/75x20 | Número de registro BMZ 11090 | 110/115x90 |
| BMZ4430 | 44/48x30 | BMZ7030 | 70/75x30 | BMZ110100 | 110/115x100 |
| BMZ4435 | 44/48x35 | BMZ7040 | 70/75x40 | BMZ110115 | 110/115x115 |
| BMZ4440 | 44/48x40 | BMZ7050 | 70/75x50 | BMZ11550 | 115/120x50 |
| BMZ4445 | 44/48x45 | BMZ7060 | 70/75x60 | BMZ11560 | 115/120x60 |
| BM74450 | 44/48x50 | BMZ7070 | 70/75x70 | BMZ11570 | 115/12x70 |
| BMZ4455 | 44/48x55 | BMZ7080 | 70/75x80 | BMZ11580 | 115/120x80 |
| BMZ4460 | 44/48x60 | BMZ7090 | 70/75x90 | Número de registro 11590 | 115/120x90 |
| BMZ4515 | 45/50x15 | BMZ7530 | 75/80x30 | BMZ115100 | 115/120x100 |
| BMZ4520 | 45/50x20 | BMZ7540 | 75/80x40 | BMZ115115 | 115/120x115 |
| BMZ4525 | 45/50x25 | BMZ7550 | 75/80x50 | BMZ12050 | 120/125x50 |
| Arte. Nr. | d/DxL | Arte. Nr. | d/DxL | Arte. Nr. | d/DxL |
| BMZ12060 | 120/125x60 | BMz17060 | 170/175x60 | BMZ200130 | 200/205x130 |
| BMZ12070 | 120/125x70 | Número de registro 17070 | 170/175x70 | BMZ200140 | 200/205x140 |
| BMZ12080 | 120/125x80 | BMZ17080 | 170/175x80 | BMz200150 | 200/205x150 |
| BMZ12090 | 120/125x90 | Número de registro 17090 | 170/175x90 | BMZ20560 | 205/210x60 |
| Número de registro BMZ 120100 | 120/125x100 | BMZ170100 | 170/175x100 | BMZ20570 | 205/210x70 |
| Número de registro BMZ 120120 | 120/125x120 | BMz170110 | 170/175x110 | BMZ20580 | 205/210x80 |
| BMz12550 | 125/130x50 | BMz170120 | 170/175x120 | BMz20590 | 205/210x90 |
| BMZ12560 | 125/130x60 | BMZ170130 | 170/175x130 | Número de serie 205100 | 205/210x100 |
| BMZ12570 | 125/130x70 | BMZ170140 | 170/175x140 | BMZ205110 | 205/210x110 |
| BMZ12580 | 125/130x80 | BMZ170150 | 170/175x150 | Número de registro 205120 | 205/210x120 |
| BMZ12590 | 125/130x90 | Número de registro 17560 | 175/180x60 | Número de registro 205130 | 205/210x130 |
| BMZ125100 | 125/130x100 | BMz17570 | 175/180x70 | BMZ205140 | 205/210x140 |
| BMZ125115 | 125/130x115 | Número de registro BMZ 17580 | 175/180x80 | Número de registro BMZ 205150 | 205/210x150 |
| BMZ13060 | 130/135x60 | BMZ17590 | 175/180x90 | BMZ21060 | 210/215x60 |
| BMZ13070 | 130/135x70 | BMZ175100 | 175/180x100 | BMZ21070 | 210/215x70 |
| BMZ13080 | 130/135x80 | BMZ175110 | 175/180x110 | BMZ21080 | 210/215x80 |
| BMZ13090 | 130/135x90 | BMZ175120 | 175/180x120 | BMZ21090 | 210/215x90 |
| BMZ130100 | 130/135x100 | BMZ175130 | 175/180x130 | BMZ210100 | 210/215x100 |
| BMZ130120 | 130/135x120 | BMZ175140 | 175/180x140 | BMZ210110 | 210/215x110 |
| BMZ13560 | 135/140x60 | BMZ175150 | 175/180x150 | Número de registro 210120 | 210/215x120 |
| BMZ13570 | 135/140x70 | BMZ18060 | 180/185x60 | BMZ210130 | 210/215x130 |
| BMZ13580 | 135/140x80 | Número de registro BMZ 18070 | 180/185x70 | Número de registro BMZ 210140 | 210/215x140 |
| BMZ13590 | 135/140x90 | BMZ18080 | 180/185x80 | BMZ210150 | 210/215x150 |
| Número de registro BMZ 135100 | 135/140x100 | Número de registro BMZ 18090 | 180/185x90 | BMZ21560 | 215/220x60 |
| BMZ135120 | 135/140x120 | BMZ180100 | 180/185x100 | BMZ21570 | 215/220x70 |
| Número de registro BMZ 14060 | 140/145x60 | BMZ180110 | 180/185x110 | BMZ21580 | 215/220x80 |
| BMZ14070 | 140/145x70 | BMZ180120 | 180/185x120 | BMZ21590 | 215/220x90 |
| BMZ14080 | 140/145x80 | BMZ180130 | 180/185x130 | BMZ215100 | 215/220x100 |
| BMZ14090 | 140/145x90 | BMZ180140 | 180/185x140 | BMZ215110 | 215/220x110 |
| Número de registro BMZ 140100 | 140/145x100 | BMZ180150 | 180/185x150 | Número de registro BMZ 215120 | 215/220x120 |
| Número de registro BMZ 14560 | 145/150x60 | Número de registro BMZ 18560 | 185/190x60 | Número de registro BMZ 215130 | 215/220x130 |
| BMZ14570 | 145/150x70 | Número de registro BMZ 18570 | 185/190x70 | Número de registro BMZ 215140 | 215/220x140 |
| BMZ14580 | 145/150x80 | BMZ18580 | 185/190x80 | BMZ215150 | 215/220x150 |
| BMZ14590 | 145/150x90 | Número de registro 18590 | 185/190x90 | BMZ22060 | 220/225x60 |
| BMZ145100 | 145/150x100 | BMZ185100 | 185/190x100 | BMZ22070 | 220/225x70 |
| Número de registro 145120 | 145/150x120 | BMZ185110 | 185/190x110 | BMZ22080 | 220/225x80 |
| BMZ15060 | 150/155x60 | BMZ185120 | 185/190x120 | BMZ22090 | 220/225x90 |
| BMZ15070 | 150/155x70 | BM7185130 | 185/190x130 | Número de registro BMZ 220100 | 220/225x100 |
| BMZ15080 | 150/155x80 | BMZ185140 | 185/190x140 | BMZ220110 | 220/225x110 |
| BMZ15090 | 150/155x90 | BMZ185150 | 185/190x150 | BMZ220120 | 220/225x120 |
| Número de registro BMZ 150100 | 150/155x100 | BMZ19060 | 190/195x60 | Número de registro BMZ 220130 | 220/225x130 |
| BMZ15550 | 155/160x50 | BMZ19070 | 190/195x70 | BMZ220140 | 220/225x140 |
| BMZ15560 | 155/160x60 | BMZ19080 | 190/195x80 | Número de serie 220150 | 220/225x150 |
| BMZ15570 | 155/160x70 | BMz19090 | 190/195x90 | BMZ22560 | 225/230x60 |
| BMZ15580 | 155/160x80 | BMZ190100 | 190/195x100 | BMZ22570 | 225/230x70 |
| BMZ15590 | 155/160x90 | BMZ190110 | 190/195x110 | BMZ22580 | 225/230x80 |
| BMZ155100 | 155/160x100 | BMZ190120 | 190/195x120 | BMZ22590 | 225/230x90 |
| BMZ16060 | 160/165x60 | BMZ190130 | 190/195x130 | BMZ225100 | 225/230x100 |
| BMZ16070 | 160/165x70 | BMZ190140 | 190/195x140 | Número de registro BMZ 225110 | 225/230x110 |
| BMZ16080 | 160/165x80 | BMZ190150 | 190/195x150 | BMZ225120 | 225/230x120 |
| BMZ16090 | 160/165x90 | BMZ19560 | 195/200x60 | BMZ225130 | 225/230x130 |
| BMZ160100 | 160/165x100 | BMZ19570 | 195/200x70 | BMZ225140 | 225/230x140 |
| BMZ160110 | 160/165x110 | BMZ19580 | 195/200x80 | BMZ225150 | 225/230x150 |
| BMZ160120 | 160/165x120 | BMZ19590 | 195/200x90 | BMZ23060 | 230/235x60 |
| BMZ160130 | 160/165x130 | BMZ195100 | 195/200x100 | BMZ23070 | 230/235x70 |
| BMZ160140 | 160/165x140 | BMZ195110 | 195/200x110 | BMZ23080 | 230/235x80 |
| BMZ160150 | 160/165x150 | BMZ195120 | 195/200x120 | BMZ23090 | 230/235x90 |
| BMZ16560 | 165/170x60 | BMZ195130 | 195/200x130 | BMZ230100 | 230/235x100 |
| Número de registro 16570 | 165/170x70 | BMZ195140 | 195/200x140 | Número de registro BMZ 230110 | 230/235x110 |
| BMZ16580 | 165/170x80 | BMZ195150 | 195/200x150 | BMZ230120 | 230/235x120 |
| Número de registro BMZ 16590 | 165/170x90 | BMZ20060 | 200/205x60 | Número de registro BMZ 230130 | 230/235x130 |
| BMZ165100 | 165/17x100 | BMZ20070 | 200/205x70 | Número de registro BMZ 230140 | 230/235x140 |
| Número de registro 165110 | 165/170x110 | BMZ20080 | 200/205x80 | Número de registro BMZ 230150 | 230/235x150 |
| RM716120 | 165/170x120 | BMZ20090 | 200/205x90 | BMZ24060 | 240/245x60 |
| RMZ165130 | 165/170x130 | BMZ200100 | 200/205 x 00 | BMZ24070 | 240/245x70 |
| RM7165140 | 165/170x140 | BM7200110 | 200/205x110 | BMZ24080 | 240/245x80 |
| RM7165150 | 165/170x150 | BMZ200120 | 200/205x120 | BMZ24090 | 240/245x90 |
| Arte. Nr. | d/DxL |
| BMZ240100 | 240/245x100 |
| BMZ240110 | 240/245x110 |
| BMZ240120 | 240/245x120 |
| BMZ240130 | 240/245x130 |
| BMZ240140 | 240/245x140 |
| BMZ240150 | 240/245x150 |
| Número de registro BMZ 25060 | 250/255x60 |
| Número de registro BMZ 25070 | 250/255x70 |
| BMZ25080 | 250/255x80 |
| Número de registro BMZ 25090 | 250/255x90 |
| BMZ250100 | 250/255x100 |
| BMz250110 | 250/255x110 |
| BM7250120 | 250/255x130 |
| Número de registro BMZ 250130 | 250/255x140 |
| BMZ250140 | 250/255x140 |
| BMZ250150 | 250/255x150 |
| BMZ26060 | 260/265x60 |
| Número de registro BMZ 26070 | 260/265x70 |
| Número de registro BMZ 26080 | 260/265x80 |
| BMZ26090 | 260/265x90 |
| BMZ260100 | 260/265x100 |
| BMZ260110 | 260/265x110 |
| BMZ260120 | 260/265x120 |
| BMZ260130 | 260/265x130 |
| BMZ260140 | 260/265x140 |
| BMZ260150 | 260/265x150 |
| BMZ27060 | 270/275x60 |
| Número de registro BMZ 27070 | 270/275x70 |
| Número de registro BMZ 27080 | 270/275x80 |
| BMZ27090 | 270/275x90 |
| BMZ270100 | 270/275x100 |
| BMZ270110 | 270/275x110 |
| BMZ270120 | 270/275x120 |
| BMZ270130 | 270/275x130 |
| BM7270140 | 270/275x140 |
| BMZ270150 | 270/275x150 |
| BMZ28060 | 280/285x60 |
| BMZ28070 | 280/285x70 |
| Número de registro BMZ 28080 | 280/285x80 |
| BMZ28090 | 280/285x90 |
| Número de registro BMZ 280100 | 280/285x100 |
| BMZ280110 | 280/285x110 |
| BMZ280120 | 280/285x120 |
| BMZ280130 | 280/285x130 |
| BMZ280140 | 280/285x140 |
| BMZ280150 | 280/285x150 |
| BMZ29060 | 290/295x60 |
| BMZ29070 | 290/295x70 |
| Número de registro BMZ 29080 | 290/295x80 |
| BMZ29090 | 290/295x90 |
| BMZ290100 | 290/295x100 |
| BMZ290110 | 290/295x110 |
| BMZ290120 | 290/295x120 |
| BMZ290130 | 290/295x130 |
| BMZ290140 | 290/295x140 |
| BM7290150 | 290/295x150 |
| BMZ30060 | 300/305x60 |
| BMZ30070 | 300/305x70 |
| BMZ30080 | 300/305x80 |
| BMZ30090 | 300/305x90 |
| Número de registro BMZ 300100 | 300/305x100 |
| BMZ300110 | 300/305 x 10 |
| Número de registro BMZ 300120 | 300/305 x 20 |
