El tamaño métrico CuSn6Zn6Pb3 echó los bujes de bronce

Lugar de origen HECHO EN CHINA
Nombre de la marca VIIPLUS
Certificación ISO 9001
Número de modelo CuSn6Zn6Pb3 echó el buje de bronce
Cantidad de orden mínima Negociable
Precio Negotiable
Detalles de empaquetado CAJA DE MADERA DE LA PLATAFORMA DE MADERA DEL CARTÓN DE LA EXPORTACIÓN
Tiempo de entrega 7-25 días del trabajo
Condiciones de pago T/T
Capacidad de la fuente 5000000 pedazos/pedazos una semana

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Artículo transportes de bronce del molde Tipo eche los cojinetes lisos de bronce
característica Piezas de bronce del final Tamaño Tamaño métrico, o modificar tamaño para requisitos particulares
Material CuSn6Zn6Pb3 de bronce Forma Cilíndrico, modificado para requisitos particulares
Llevar precio de fábrica que forra tiffany@viiplus.com Fabricante que forra que lleva autolubricador https://www.viiplus.com/
Alta luz RG7 echó los bujes de bronce, bujes de bronce del molde superior, Tin Bronze Bushings, 2,1090 CuSn7Z Buje de bronce echado Bujes del grafito del enchufe – este producto es un buje de bronce del molde que se ha molido y se h
Exportadores de los fabricante-suministrador de los transportes de Bush transportes llanos. De largo, el servicio sin necesidad de mantenimiento, fabrica los bujes en diver
Alta luz

CuSn6Zn6Pb3 echó los bujes de bronce

,

HB80 echó los bujes de bronce

,

HB100 echó los cojinetes lisos de bronce

Deja un mensaje
Descripción de producto

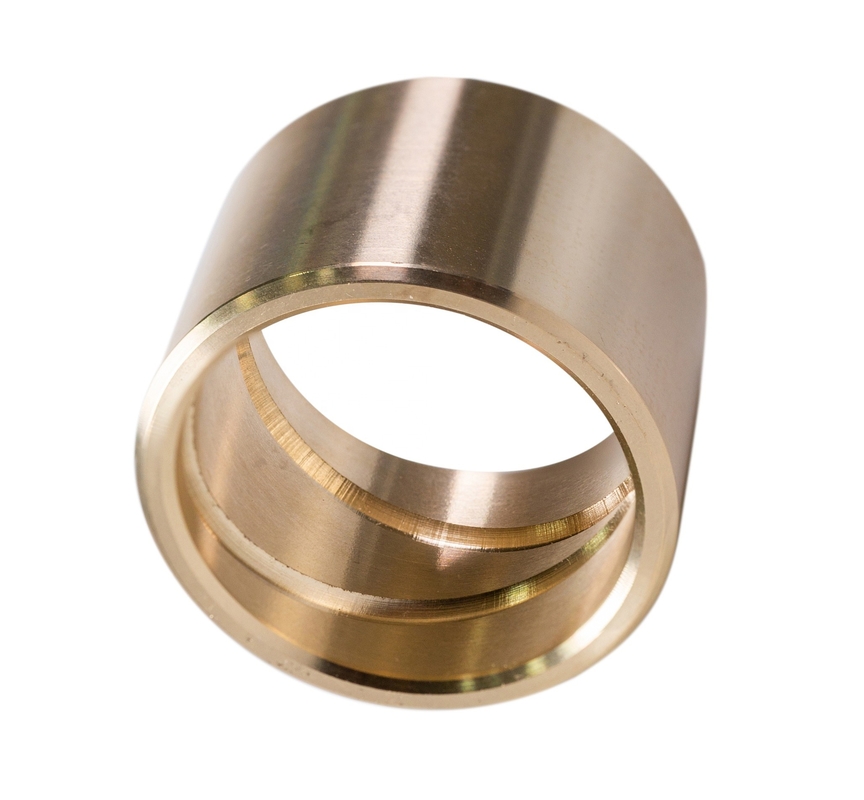

CuSn6Zn6Pb3 Cast Bronze Bushings,

Wide range of copper-based materials. Pre-turned or finalized ready for assembly parts. E-Cu, Bronze & Brass Alloys. Used for Bearing Cages, Sliding Bearings, Bushings.



BUSHING COD. 20082557 17*26*5.5 material ZCuZn25Al6Fe3Mn3

The machined cast bronze bushing offers technically and economically favorable bearing solutions.



Specializing In The Production Of Non-standard CuSn6Zn6Pb3 Graphite Phosphor Bronze Bearings,Graphite Copper Sleeve Special Brass Bushing made to order.



High load capacity, low weight, good resistance to corrosion.



The cast bronze bushing (or plain bearing) is a hollow cylindrical component, such as a tube, and it is usually split in two, split with one, two, or even no flange and is used for axial expansion. They are parts that are subjected to frictional forces due to rotation and are used in light, heavy or super-heavy machines and equipment.





Viiplus bearing can offer different types of bronze alloys according to lifetime, service etc.

As a leading manufacturer of self-lubricating bearings and bushings, we offer many high quality products, such as steel bronze bushings, precision steel bushings, ejector guide bushings, hardened steel bushings, bimetallic bearings, post bushings driving and so on. These products are widely used in metallurgy, automobiles, mining, petroleum, rolling mills, chemical industry, engines, ships, printing machines and plastics.





This type of cast bronze bushing hardened steel bearings is intended for heavy duty applications on construction machinery. For better performance, hardening of the bushings can be treated with a special hardening process or QPQ process to achieve excellent hardness requirements and lubrication characteristics.



Casting Phosphor Bronze Bush

Phosphor Bronze Bushes Phosphor Bronze parts Phosphor Bronze components Phosphor Bronze bushings



Providing you the best range of casting phosphor bronze bushes with effective & timely delivery.



CAST BRONZE BUSHING



SEARCHING BY CAST BRONZE BUSHING SIZE

STANDARD CAST BRONZE BUSHING CATALOG



Cast Bronze Bushing Material



The common material is like CUZN25AL5, CUSN6ZN6PB3, CUSN5ZN5PB5, CUAL10FE5NI5, CUSN12, CUSN10PB10 and so on.





Cast Bronze Bushing Size



  • Customizable



Cast bronze bushing type: bronze bushing, bronze worm, bronze plates, bronze shell, flange bronze bushing and so on.



Tolerance is much tighter than packaged bronze bushings.



HIGH QUALITY CAST BRONZE BUSHING WITH COMPOSITE PRICE



Cast Bronze Bushing,JDB-2 Solid Lubrication Bearing





Base material CuSn6Zn6Pb3
Dynanic load 60N/mm2
Base hardness HB80~100
Friction Coef. <0.15
Temp Max. 350℃
Speed limit 2m/s



Cast bronze bushing JDB-2 is made of bronze CuSn6Zn6Pb3 with graphite evenly embedded in it. It can work under low load, high temperature and middle speed, e.g. in fireplace gate, convey way of the Baking furnace, rubber machine, light industry and machine tools industry etc.



Chemical Composition



Grades Elements Percentage
Copper (CU) Remainder
Tin (Sn) 3.50-4.50%
Zinc (Zn) 0.35% max
Nickel (Ni) 0.45% max
Lead (Pb) 0.25% max
Phosphorus (P) 0.15 – 0.8%
Aluminium (Al) 0.005% max
Iron (Fe) 0.15% max



Cast Bronze Bushing Advantages



  • The highest security performance
  • To prevent the vibration and dynamic load caused by loosening
  • Easy to install and remove
  • Locking effect is not affected by lubrication
  • Regardless of the level of the pre tightening force has a good locking effect
  • Can control the level of pre tightening force
  • The same temperature characteristics with the standard bolt / nut
  • Can be used repeatedly



Cast Bronze Bushings with Solid Lubricant Inserts



  • Maintenance-free bearing material for heavy duty applications
  • Excellent performance under high loads and intermittent operation
  • Also available with graphite inserts for temperatures above 250°C



Bronze Bushing Groove Type

bronze bushing groove type



AVAILABILITY



Cast bronze bushing forms made to order:

cylindrical bushes, flanged bushes, thrust washers, sliding plates, pintle bearings, half-bearings, axial and radial segment rings, self-aligning spherical bearings, customized bearing designs



Our Cast Bronze Bushing High Quality


- Control quality and price: complete service from the casting of the raw material to the finished product, strictly control the quality and cost of all links.
- Advanced test equipment: Spectrometer imported from Germany - component warranty; Universal testing machine - test tensile strength, elongation and yield strength; Brinell hardness tester - hardness test.
- Customization: we can provide customized product services according to the design and material requirements.





Cast Bronze Bushing Application



Used in many industries:Excavators, Cranes and some crucial parts of construction machinery and etc.



It is not unusual to come across a cast bronze bushing that has worked satisfactorily for decades.
In fact, a properly designed and maintained bronze bearing will often exceed the life of the equipment it serves.
The relatively high hardness and good impact resistance of the cast bronze bushing make it widely used in mechanical engineering,earthmoving equipment, hydraulic cylinders, lifting equipment, pumps and other bearings.





cast bronze bushing application - engineering machinery
