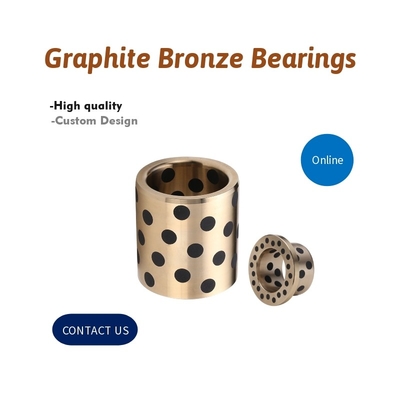

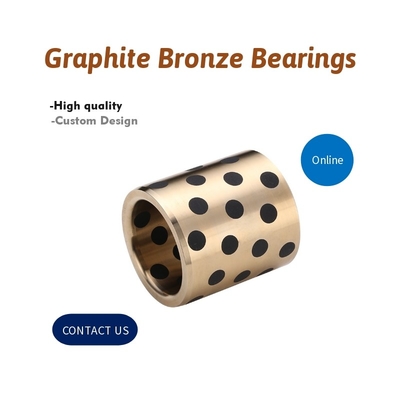

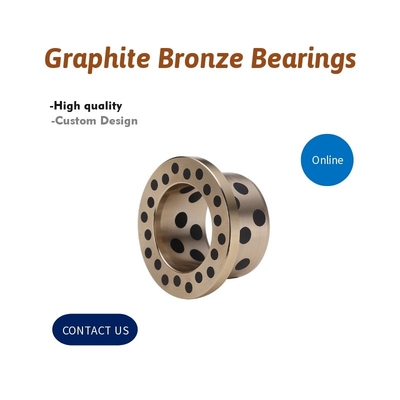

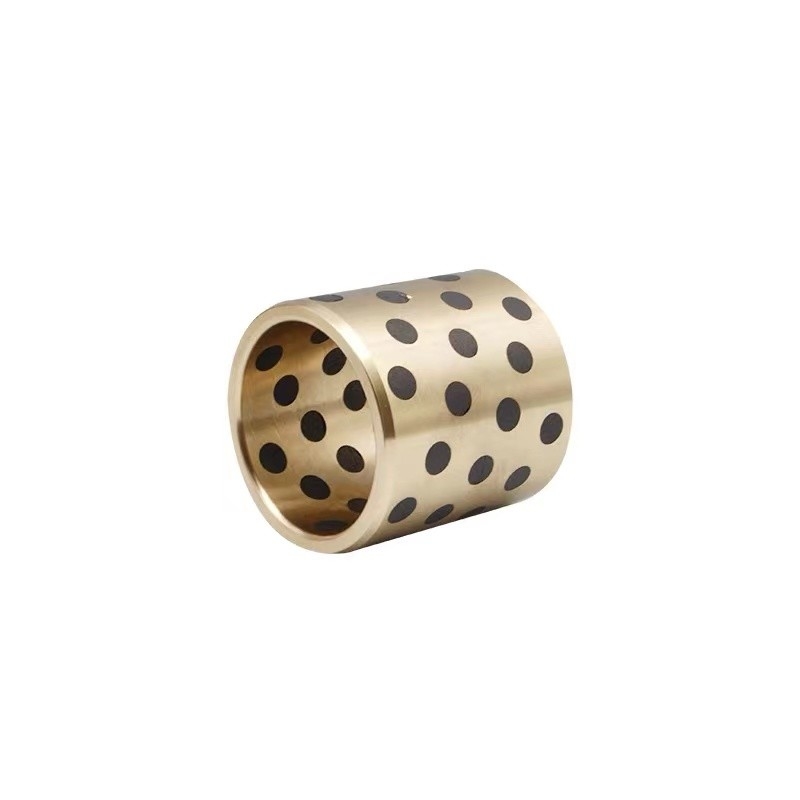

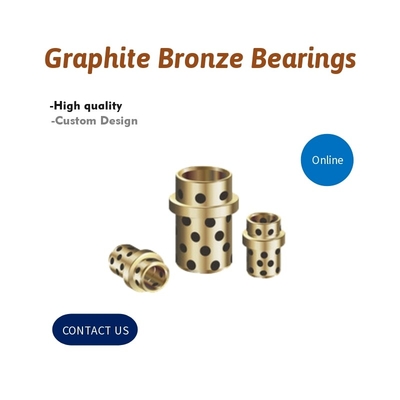

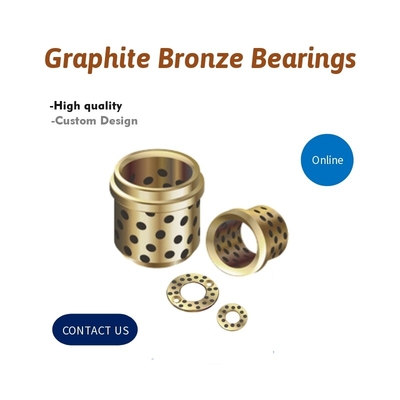

Uno mismo que lubrica los bujes tapados grafito integrado sólido
Lugar de origen | HECHO EN CHINA |
---|---|
Nombre de la marca | VIIPLUS |
Certificación | ISO9001 |
Número de modelo | Transportes de bronce del grafito |
Cantidad de orden mínima | Negociable |
Precio | Negotiable |
Detalles de empaquetado | CAJA DE MADERA DE LA PLATAFORMA DE MADERA DEL CARTÓN DE LA EXPORTACIÓN |
Tiempo de entrega | 7-25 días del trabajo |
Condiciones de pago | T/T |
Capacidad de la fuente | 7000000 pedazos/pedazos una semana |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xMarca | VIIPLUS | Tipo | Derecho, ensanchado, lavadoras |
---|---|---|---|
Material | Grafito, bronce | Ventajas | Precio de alta calidad, bueno |
Lugar de origen | Zhejiang, China | Producto | Cree para requisitos particulares |
Llevar precio de fábrica que forra | tiffany@viiplus.com | Fabricante que forra que lleva autolubricador | https://www.viiplus.com/ |
Artículo | grafitado de bronce | El grafito tapó los bujes | Transporte esférico de Oilless Bush #500 de la compra (SPS) de China, piezas que moldean de la autom |
Exportadores de los fabricante-suministrador de los transportes de Bush | transportes llanos. De largo, el servicio sin necesidad de mantenimiento, fabrica los bujes en diver | ||
Alta luz | uno mismo que lubrica los bujes de bronce,bujes de bronce tapados grafito |
Transportes de bronce del grafito| Derecho, ensanchado, lavadoras, Pin de guía, eyector de la guía, poste de la guía, cojinetes esféricos, lisos
Transportes de bronce del grafito|Derecho, ensanchado, lavadoras, Pin de guía, eyector de la guía, poste de la guía, línea Esférico-imperial bujes (dimensiones en pulgadas)
grafito bearing.pdf autolubricador del cojinete liso
Buje oilless de MPBZ MPBR MPBZU MPBRU MPBPU, transporte de bronce sin aceite del arbusto
- Aleación de cobre recta, pared estándar/fina, identificación. F7 O.D. m6
Bujes de la aleación de cobre en uso general. Pared fina a ser comparable a de múltiples capas SI los bujes, sobresalen en la resistencia de abrasión comparada a de múltiples capas SI los bujes. Usable bajo condiciones de la alto-carga.
Los transportes del bronce del grafito son un substrato del polvo del acero de carbono, de bronce, de PTFE, de la fibra y de otros materiales con un proceso especial para producir productos autolubricadores, con las características de la protección del medio ambiente
El transporte integrado sólido está en una matriz de cobre amarillo. Un lubricante sólido del alto rendimiento embutido con el grafito o el lubricante sólido MoS2. Se rompe con la limitación que los transportes de bronce del grafito general dependen de la lubricación de la película de aceite. En curso de uso, el calor de la fricción hace la fricción sólida de la lubricación y del eje, formando un perfecto estado para el aceite y el polvo para coexistir la lubricación, que no sólo protege el eje contra desgaste, pero también hace características sólidas de la lubricación eternas. Su dureza es dos veces más alta que la de la envoltura de cobre ordinaria, y su resistencia de desgaste es también dos veces tan alta. Actualmente, el producto de bronce de los transportes del grafito se ha utilizado en la máquina de colada continua de la metalurgia, tren la ayuda, el equipo del laminado de acero, la maquinaria de explotación minera, las naves, las turbinas de gas y la otra carga da alta temperatura, alta, carga pesada de poca velocidad y otras ocasiones.
oilles que llevan el modelo
Transportes de bronce del grafito | De alta calidad, precio de fábrica
Material de bronce de los transportes del grafito
- De bronce con el lubricante sólido, lubricante oilless
Características de bronce lubricadas uno mismo de los transportes del grafito
·El uno mismo lubricó los transportes a 450°
·Lubricante del uno mismo
·Se realiza bien en la alta carga, operaciones de poca velocidad
·Resiste corrosivo y y ambientes hostiles.
·Excelente rendimiento en medio a la temperatura alta (hasta 600°).
·Comparable con la mayoría de los lubricantes, de los aceites, y de los usos viscosos de la grasa.
Las SERIES de Replacment 500SP1-SL1 BRONCEAN la hoja tapada BUJE del tamaño del grafito:
Las SERIES de Replacment 500SP1-SL1 BRONCEAN el BUJE |
diámetro interno | diámetro externo | longitud |
GRAFITO DE BRONCE BUSHINGS-061008 | 6 | 10 | 8 |
GRAFITO DE BRONCE BUSHINGS-061010 | 6 | 10 | 10 |
GRAFITO DE BRONCE BUSHINGS-061012 | 6 | 10 | 12 |
GRAFITO DE BRONCE BUSHINGS-081208 | 8 | 12 | 8 |
GRAFITO DE BRONCE BUSHINGS-081210 | 8 | 12 | 10 |
GRAFITO DE BRONCE BUSHINGS-081212 | 8 | 12 | 12 |
GRAFITO DE BRONCE BUSHINGS-081215 | 8 | 12 | 15 |
GRAFITO DE BRONCE BUSHINGS-101408 | 10 | 14 | 8 |
GRAFITO DE BRONCE BUSHINGS-101410 | 10 | 14 | 10 |
GRAFITO DE BRONCE BUSHINGS-101412 | 10 | 14 | 12 |
GRAFITO DE BRONCE BUSHINGS-101415 | 10 | 14 | 15 |
GRAFITO DE BRONCE BUSHINGS-101420 | 10 | 14 | 20 |
GRAFITO DE BRONCE BUSHINGS-121808 | 12 | 18 | 8 |
GRAFITO DE BRONCE BUSHINGS-121810 | 12 | 18 | 10 |
GRAFITO DE BRONCE BUSHINGS-121812 | 12 | 18 | 12 |
GRAFITO DE BRONCE BUSHINGS-121815 | 12 | 18 | 15 |
GRAFITO DE BRONCE BUSHINGS-121816 | 12 | 18 | 16 |
GRAFITO DE BRONCE BUSHINGS-121819 | 12 | 18 | 19 |
GRAFITO DE BRONCE BUSHINGS-121820 | 12 | 18 | 20 |
GRAFITO DE BRONCE BUSHINGS-121825 | 12 | 18 | 25 |
GRAFITO DE BRONCE BUSHINGS-121830 | 12 | 18 | 30 |
GRAFITO DE BRONCE BUSHINGS-131910 | 13 | 19 | 10 |
GRAFITO DE BRONCE BUSHINGS-131912 | 13 | 19 | 12 |
GRAFITO DE BRONCE BUSHINGS-131915 | 13 | 19 | 15 |
GRAFITO DE BRONCE BUSHINGS-131920 | 13 | 19 | 20 |
GRAFITO DE BRONCE BUSHINGS-131925 | 13 | 19 | 25 |
GRAFITO DE BRONCE BUSHINGS-131930 | 13 | 19 | 30 |
GRAFITO DE BRONCE BUSHINGS-142010 | 14 | 20 | 10 |
GRAFITO DE BRONCE BUSHINGS-142012 | 14 | 20 | 12 |
GRAFITO DE BRONCE BUSHINGS-142015 | 14 | 20 | 15 |
GRAFITO DE BRONCE BUSHINGS-142020 | 14 | 20 | 20 |
GRAFITO DE BRONCE BUSHINGS-142025 | 14 | 20 | 25 |
GRAFITO DE BRONCE BUSHINGS-142030 | 14 | 20 | 30 |
GRAFITO DE BRONCE BUSHINGS-152110 | 15 | 21 | 10 |
GRAFITO DE BRONCE BUSHINGS-152112 | 15 | 21 | 12 |
GRAFITO DE BRONCE BUSHINGS-152115 | 15 | 21 | 15 |
GRAFITO DE BRONCE BUSHINGS-152116 | 15 | 21 | 16 |
GRAFITO DE BRONCE BUSHINGS-152120 | 15 | 21 | 20 |
GRAFITO DE BRONCE BUSHINGS-152125 | 15 | 21 | 25 |
GRAFITO DE BRONCE BUSHINGS-152130 | 15 | 21 | 30 |
GRAFITO DE BRONCE BUSHINGS-152135 | 15 | 21 | 35 |
GRAFITO DE BRONCE BUSHINGS-152140 | 15 | 21 | 40 |
GRAFITO DE BRONCE BUSHINGS-162210 | 16 | 22 | 10 |
GRAFITO DE BRONCE BUSHINGS-162212 | 16 | 22 | 12 |
GRAFITO DE BRONCE BUSHINGS-162215 | 16 | 22 | 15 |
GRAFITO DE BRONCE BUSHINGS-162216 | 16 | 22 | 16 |
GRAFITO DE BRONCE BUSHINGS-162219 | 16 | 22 | 19 |
GRAFITO DE BRONCE BUSHINGS-162220 | 16 | 22 | 20 |
GRAFITO DE BRONCE BUSHINGS-162225 | 16 | 22 | 25 |
GRAFITO DE BRONCE BUSHINGS-162230 | 16 | 22 | 30 |
GRAFITO DE BRONCE BUSHINGS-162235 | 16 | 22 | 35 |
GRAFITO DE BRONCE BUSHINGS-162240 | 16 | 22 | 40 |
GRAFITO DE BRONCE BUSHINGS-172315 | 17 | 23 | 15 |
GRAFITO DE BRONCE BUSHINGS-182410 | 18 | 24 | 10 |
GRAFITO DE BRONCE BUSHINGS-182412 | 18 | 24 | 12 |
GRAFITO DE BRONCE BUSHINGS-182415 | 18 | 24 | 15 |
GRAFITO DE BRONCE BUSHINGS-182416 | 18 | 24 | 16 |
GRAFITO DE BRONCE BUSHINGS-182420 | 18 | 24 | 20 |
GRAFITO DE BRONCE BUSHINGS-182425 | 18 | 24 | 25 |
GRAFITO DE BRONCE BUSHINGS-182430 | 18 | 24 | 30 |
GRAFITO DE BRONCE BUSHINGS-182435 | 18 | 24 | 35 |
GRAFITO DE BRONCE BUSHINGS-182440 | 18 | 24 | 40 |
GRAFITO DE BRONCE BUSHINGS-192615 | 19 | 26 | 15 |
GRAFITO DE BRONCE BUSHINGS-192620 | 19 | 26 | 20 |
GRAFITO DE BRONCE BUSHINGS-202810 | 20 | 28 | 10 |
GRAFITO DE BRONCE BUSHINGS-202812 | 20 | 28 | 12 |
GRAFITO DE BRONCE BUSHINGS-202815 | 20 | 28 | 15 |
GRAFITO DE BRONCE BUSHINGS-202816 | 20 | 28 | 16 |
GRAFITO DE BRONCE BUSHINGS-202819 | 20 | 28 | 19 |
GRAFITO DE BRONCE BUSHINGS-202820 | 20 | 28 | 20 |
GRAFITO DE BRONCE BUSHINGS-202825 | 20 | 28 | 25 |
GRAFITO DE BRONCE BUSHINGS-202830 | 20 | 28 | 30 |
GRAFITO DE BRONCE BUSHINGS-202835 | 20 | 28 | 35 |
GRAFITO DE BRONCE BUSHINGS-202840 | 20 | 28 | 40 |
GRAFITO DE BRONCE BUSHINGS-202850 | 20 | 28 | 50 |
GRAFITO DE BRONCE BUSHINGS-203010 | 20 | 30 | 10 |
GRAFITO DE BRONCE BUSHINGS-203012 | 20 | 30 | 12 |
GRAFITO DE BRONCE BUSHINGS-203015 | 20 | 30 | 15 |
GRAFITO DE BRONCE BUSHINGS-203016 | 20 | 30 | 16 |
GRAFITO DE BRONCE BUSHINGS-203020 | 20 | 30 | 20 |
GRAFITO DE BRONCE BUSHINGS-203025 | 20 | 30 | 25 |
GRAFITO DE BRONCE BUSHINGS-203030 | 20 | 30 | 30 |
GRAFITO DE BRONCE BUSHINGS-203035 | 20 | 30 | 35 |
GRAFITO DE BRONCE BUSHINGS-203040 | 20 | 30 | 40 |
GRAFITO DE BRONCE BUSHINGS-203050 | 20 | 30 | 50 |
GRAFITO DE BRONCE BUSHINGS-223212 | 22 | 32 | 12 |
GRAFITO DE BRONCE BUSHINGS-223215 | 22 | 32 | 15 |
GRAFITO DE BRONCE BUSHINGS-223220 | 22 | 32 | 20 |
GRAFITO DE BRONCE BUSHINGS-223225 | 22 | 32 | 25 |
GRAFITO DE BRONCE BUSHINGS-253312 | 25 | 33 | 12 |
GRAFITO DE BRONCE BUSHINGS-253315 | 25 | 33 | 15 |
GRAFITO DE BRONCE BUSHINGS-253316 | 25 | 33 | 16 |
GRAFITO DE BRONCE BUSHINGS-253320 | 25 | 33 | 20 |
GRAFITO DE BRONCE BUSHINGS-253325 | 25 | 33 | 25 |
GRAFITO DE BRONCE BUSHINGS-253330 | 25 | 33 | 30 |
GRAFITO DE BRONCE BUSHINGS-253335 | 25 | 33 | 35 |
GRAFITO DE BRONCE BUSHINGS-253340 | 25 | 33 | 40 |
GRAFITO DE BRONCE BUSHINGS-253350 | 25 | 33 | 50 |
GRAFITO DE BRONCE BUSHINGS-253360 | 25 | 33 | 60 |
GRAFITO DE BRONCE BUSHINGS-253512 | 25 | 35 | 12 |
GRAFITO DE BRONCE BUSHINGS-253515 | 25 | 35 | 15 |
GRAFITO DE BRONCE BUSHINGS-253516 | 25 | 35 | 16 |
GRAFITO DE BRONCE BUSHINGS-253520 | 25 | 35 | 20 |
GRAFITO DE BRONCE BUSHINGS-253525 | 25 | 35 | 25 |
GRAFITO DE BRONCE BUSHINGS-253530 | 25 | 35 | 30 |
GRAFITO DE BRONCE BUSHINGS-253535 | 25 | 35 | 35 |
GRAFITO DE BRONCE BUSHINGS-253540 | 25 | 35 | 40 |
GRAFITO DE BRONCE BUSHINGS-253550 | 25 | 35 | 50 |
GRAFITO DE BRONCE BUSHINGS-253560 | 25 | 35 | 60 |
GRAFITO DE BRONCE BUSHINGS-283820 | 28 | 38 | 20 |
GRAFITO DE BRONCE BUSHINGS-283825 | 28 | 38 | 25 |
GRAFITO DE BRONCE BUSHINGS-283830 | 28 | 38 | 30 |
GRAFITO DE BRONCE BUSHINGS-283840 | 28 | 38 | 40 |
GRAFITO DE BRONCE BUSHINGS-303812 | 30 | 38 | 12 |
GRAFITO DE BRONCE BUSHINGS-303815 | 30 | 38 | 15 |
GRAFITO DE BRONCE BUSHINGS-303820 | 30 | 38 | 20 |
GRAFITO DE BRONCE BUSHINGS-303825 | 30 | 38 | 25 |
GRAFITO DE BRONCE BUSHINGS-303830 | 30 | 38 | 30 |
GRAFITO DE BRONCE BUSHINGS-303835 | 30 | 38 | 35 |
GRAFITO DE BRONCE BUSHINGS-303840 | 30 | 38 | 40 |
GRAFITO DE BRONCE BUSHINGS-303850 | 30 | 38 | 50 |
GRAFITO DE BRONCE BUSHINGS-303860 | 30 | 38 | 60 |
GRAFITO DE BRONCE BUSHINGS-304012 | 30 | 40 | 12 |
GRAFITO DE BRONCE BUSHINGS-304015 | 30 | 40 | 15 |
GRAFITO DE BRONCE BUSHINGS-304020 | 30 | 40 | 20 |
GRAFITO DE BRONCE BUSHINGS-304025 | 30 | 40 | 25 |
GRAFITO DE BRONCE BUSHINGS-304030 | 30 | 40 | 30 |
GRAFITO DE BRONCE BUSHINGS-304035 | 30 | 40 | 35 |
GRAFITO DE BRONCE BUSHINGS-304040 | 30 | 40 | 40 |
GRAFITO DE BRONCE BUSHINGS-304050 | 30 | 40 | 50 |
GRAFITO DE BRONCE BUSHINGS-304060 | 30 | 40 | 60 |
GRAFITO DE BRONCE BUSHINGS-314030 | 31,5 | 40 | 30 |
GRAFITO DE BRONCE BUSHINGS-314040 | 31,5 | 40 | 40 |
GRAFITO DE BRONCE BUSHINGS-324220 | 32 | 42 | 20 |
GRAFITO DE BRONCE BUSHINGS-324230 | 32 | 42 | 30 |
GRAFITO DE BRONCE BUSHINGS-324240 | 32 | 42 | 40 |
GRAFITO DE BRONCE BUSHINGS-354420 | 35 | 44 | 20 |
GRAFITO DE BRONCE BUSHINGS-354425 | 35 | 44 | 25 |
GRAFITO DE BRONCE BUSHINGS-354430 | 35 | 44 | 30 |
GRAFITO DE BRONCE BUSHINGS-354435 | 35 | 44 | 35 |
GRAFITO DE BRONCE BUSHINGS-354440 | 35 | 44 | 40 |
GRAFITO DE BRONCE BUSHINGS-354450 | 35 | 44 | 50 |
GRAFITO DE BRONCE BUSHINGS-354460 | 35 | 44 | 60 |
GRAFITO DE BRONCE BUSHINGS-354520 | 35 | 45 | 20 |
GRAFITO DE BRONCE BUSHINGS-354525 | 35 | 45 | 25 |
GRAFITO DE BRONCE BUSHINGS-354530 | 35 | 45 | 30 |
GRAFITO DE BRONCE BUSHINGS-354535 | 35 | 45 | 35 |
GRAFITO DE BRONCE BUSHINGS-354540 | 35 | 45 | 40 |
GRAFITO DE BRONCE BUSHINGS-354550 | 35 | 45 | 50 |
GRAFITO DE BRONCE BUSHINGS-354560 | 35 | 45 | 60 |
GRAFITO DE BRONCE BUSHINGS-384840 | 38 | 48 | 40 |
GRAFITO DE BRONCE BUSHINGS-405015 | 40 | 50 | 15 |
GRAFITO DE BRONCE BUSHINGS-405020 | 40 | 50 | 20 |
GRAFITO DE BRONCE BUSHINGS-405025 | 40 | 50 | 25 |
GRAFITO DE BRONCE BUSHINGS-405030 | 40 | 50 | 30 |
GRAFITO DE BRONCE BUSHINGS-405035 | 40 | 50 | 35 |
GRAFITO DE BRONCE BUSHINGS-405040 | 40 | 50 | 40 |
GRAFITO DE BRONCE BUSHINGS-405050 | 40 | 50 | 50 |
GRAFITO DE BRONCE BUSHINGS-405060 | 40 | 50 | 60 |
GRAFITO DE BRONCE BUSHINGS-405070 | 40 | 50 | 70 |
GRAFITO DE BRONCE BUSHINGS-405080 | 40 | 50 | 80 |
GRAFITO DE BRONCE BUSHINGS-405515 | 40 | 55 | 15 |
GRAFITO DE BRONCE BUSHINGS-405530 | 40 | 55 | 30 |
GRAFITO DE BRONCE BUSHINGS-405535 | 40 | 55 | 35 |
GRAFITO DE BRONCE BUSHINGS-405540 | 40 | 55 | 40 |
GRAFITO DE BRONCE BUSHINGS-405550 | 40 | 55 | 50 |
GRAFITO DE BRONCE BUSHINGS-405560 | 40 | 55 | 60 |
GRAFITO DE BRONCE BUSHINGS-455530 | 45 | 55 | 30 |
GRAFITO DE BRONCE BUSHINGS-455535 | 45 | 55 | 35 |
GRAFITO DE BRONCE BUSHINGS-455540 | 45 | 55 | 40 |
GRAFITO DE BRONCE BUSHINGS-455550 | 45 | 55 | 50 |
GRAFITO DE BRONCE BUSHINGS-455560 | 45 | 55 | 60 |
GRAFITO DE BRONCE BUSHINGS-455630 | 45 | 56 | 30 |
GRAFITO DE BRONCE BUSHINGS-455635 | 45 | 56 | 35 |
GRAFITO DE BRONCE BUSHINGS-455640 | 45 | 56 | 40 |
GRAFITO DE BRONCE BUSHINGS-455650 | 45 | 56 | 50 |
GRAFITO DE BRONCE BUSHINGS-455660 | 45 | 56 | 60 |
GRAFITO DE BRONCE BUSHINGS-456030 | 45 | 60 | 30 |
GRAFITO DE BRONCE BUSHINGS-456035 | 45 | 60 | 35 |
GRAFITO DE BRONCE BUSHINGS-456040 | 45 | 60 | 40 |
GRAFITO DE BRONCE BUSHINGS-456050 | 45 | 60 | 50 |
GRAFITO DE BRONCE BUSHINGS-456060 | 45 | 60 | 60 |
GRAFITO DE BRONCE BUSHINGS-456070 | 45 | 60 | 70 |
GRAFITO DE BRONCE BUSHINGS-456080 | 45 | 60 | 80 |
GRAFITO DE BRONCE BUSHINGS-506020 | 50 | 60 | 20 |
GRAFITO DE BRONCE BUSHINGS-506030 | 50 | 60 | 30 |
GRAFITO DE BRONCE BUSHINGS-506035 | 50 | 60 | 35 |
GRAFITO DE BRONCE BUSHINGS-506040 | 50 | 60 | 40 |
GRAFITO DE BRONCE BUSHINGS-506050 | 50 | 60 | 50 |
GRAFITO DE BRONCE BUSHINGS-506060 | 50 | 60 | 60 |
GRAFITO DE BRONCE BUSHINGS-506070 | 50 | 60 | 70 |
GRAFITO DE BRONCE BUSHINGS-506080 | 50 | 60 | 80 |
GRAFITO DE BRONCE BUSHINGS-506230 | 50 | 62 | 30 |
GRAFITO DE BRONCE BUSHINGS-506235 | 50 | 62 | 35 |
GRAFITO DE BRONCE BUSHINGS-506240 | 50 | 62 | 40 |
GRAFITO DE BRONCE BUSHINGS-506250 | 50 | 62 | 50 |
GRAFITO DE BRONCE BUSHINGS-506260 | 50 | 62 | 60 |
GRAFITO DE BRONCE BUSHINGS-506270 | 50 | 62 | 70 |
GRAFITO DE BRONCE BUSHINGS-506280 | 50 | 62 | 80 |
GRAFITO DE BRONCE BUSHINGS-506530 | 50 | 65 | 30 |
GRAFITO DE BRONCE BUSHINGS-506540 | 50 | 65 | 40 |
GRAFITO DE BRONCE BUSHINGS-506550 | 50 | 65 | 50 |
GRAFITO DE BRONCE BUSHINGS-506560 | 50 | 65 | 60 |
GRAFITO DE BRONCE BUSHINGS-506570 | 50 | 65 | 70 |
GRAFITO DE BRONCE BUSHINGS-506580 | 50 | 65 | 80 |
GRAFITO DE BRONCE BUSHINGS-5065100 | 50 | 65 | 100 |
GRAFITO DE BRONCE BUSHINGS-557030 | 55 | 70 | 30 |
GRAFITO DE BRONCE BUSHINGS-557035 | 55 | 70 | 35 |
GRAFITO DE BRONCE BUSHINGS-557040 | 55 | 70 | 40 |
GRAFITO DE BRONCE BUSHINGS-557050 | 55 | 70 | 50 |
GRAFITO DE BRONCE BUSHINGS-557060 | 55 | 70 | 60 |
GRAFITO DE BRONCE BUSHINGS-557070 | 55 | 70 | 70 |
GRAFITO DE BRONCE BUSHINGS-607430 | 60 | 74 | 30 |
GRAFITO DE BRONCE BUSHINGS-607435 | 60 | 74 | 35 |
GRAFITO DE BRONCE BUSHINGS-607440 | 60 | 74 | 40 |
GRAFITO DE BRONCE BUSHINGS-607450 | 60 | 74 | 50 |
GRAFITO DE BRONCE BUSHINGS-607460 | 60 | 74 | 60 |
GRAFITO DE BRONCE BUSHINGS-607470 | 60 | 74 | 70 |
GRAFITO DE BRONCE BUSHINGS-607480 | 60 | 74 | 80 |
GRAFITO DE BRONCE BUSHINGS-607530 | 60 | 75 | 30 |
GRAFITO DE BRONCE BUSHINGS-607535 | 60 | 75 | 35 |
GRAFITO DE BRONCE BUSHINGS-607540 | 60 | 75 | 40 |
GRAFITO DE BRONCE BUSHINGS-607550 | 60 | 75 | 50 |
GRAFITO DE BRONCE BUSHINGS-607560 | 60 | 75 | 60 |
GRAFITO DE BRONCE BUSHINGS-607570 | 60 | 75 | 70 |
GRAFITO DE BRONCE BUSHINGS-607580 | 60 | 75 | 80 |
GRAFITO DE BRONCE BUSHINGS-6075100 | 60 | 75 | 100 |
GRAFITO DE BRONCE BUSHINGS-637560 | 63 | 75 | 60 |
GRAFITO DE BRONCE BUSHINGS-637570 | 63 | 75 | 70 |
GRAFITO DE BRONCE BUSHINGS-637580 | 63 | 75 | 80 |
GRAFITO DE BRONCE BUSHINGS-658040 | 65 | 80 | 40 |
GRAFITO DE BRONCE BUSHINGS-658050 | 65 | 80 | 50 |
GRAFITO DE BRONCE BUSHINGS-658060 | 65 | 80 | 60 |
GRAFITO DE BRONCE BUSHINGS-658070 | 65 | 80 | 70 |
GRAFITO DE BRONCE BUSHINGS-658080 | 65 | 80 | 80 |
GRAFITO DE BRONCE BUSHINGS-708530 | 70 | 85 | 30 |
GRAFITO DE BRONCE BUSHINGS-708535 | 70 | 85 | 35 |
GRAFITO DE BRONCE BUSHINGS-708540 | 70 | 85 | 40 |
GRAFITO DE BRONCE BUSHINGS-708550 | 70 | 85 | 50 |
GRAFITO DE BRONCE BUSHINGS-708560 | 70 | 85 | 60 |
GRAFITO DE BRONCE BUSHINGS-708570 | 70 | 85 | 70 |
GRAFITO DE BRONCE BUSHINGS-708580 | 70 | 85 | 80 |
GRAFITO DE BRONCE BUSHINGS-7085100 | 70 | 85 | 100 |
GRAFITO DE BRONCE BUSHINGS-709050 | 70 | 90 | 50 |
GRAFITO DE BRONCE BUSHINGS-709060 | 70 | 90 | 60 |
GRAFITO DE BRONCE BUSHINGS-709070 | 70 | 90 | 70 |
GRAFITO DE BRONCE BUSHINGS-709080 | 70 | 90 | 80 |
GRAFITO DE BRONCE BUSHINGS-759050 | 75 | 90 | 50 |
GRAFITO DE BRONCE BUSHINGS-759060 | 75 | 90 | 60 |
GRAFITO DE BRONCE BUSHINGS-759070 | 75 | 90 | 70 |
GRAFITO DE BRONCE BUSHINGS-759080 | 75 | 90 | 80 |
GRAFITO DE BRONCE BUSHINGS-7590100 | 75 | 90 | 100 |
GRAFITO DE BRONCE BUSHINGS-759560 | 75 | 95 | 60 |
GRAFITO DE BRONCE BUSHINGS-759570 | 75 | 95 | 70 |
GRAFITO DE BRONCE BUSHINGS-759580 | 75 | 95 | 80 |
GRAFITO DE BRONCE BUSHINGS-7595100 | 75 | 95 | 100 |
GRAFITO DE BRONCE BUSHINGS-809640 | 80 | 96 | 40 |
GRAFITO DE BRONCE BUSHINGS-809650 | 80 | 96 | 50 |
GRAFITO DE BRONCE BUSHINGS-809660 | 80 | 96 | 60 |
GRAFITO DE BRONCE BUSHINGS-809670 | 80 | 96 | 70 |
GRAFITO DE BRONCE BUSHINGS-809680 | 80 | 96 | 80 |
GRAFITO DE BRONCE BUSHINGS-8096100 | 80 | 96 | 100 |
GRAFITO DE BRONCE BUSHINGS-8096120 | 80 | 96 | 120 |
GRAFITO DE BRONCE BUSHINGS-8010040 | 80 | 100 | 40 |
GRAFITO DE BRONCE BUSHINGS-8010050 | 80 | 100 | 50 |
GRAFITO DE BRONCE BUSHINGS-8010060 | 80 | 100 | 60 |
GRAFITO DE BRONCE BUSHINGS-8010070 | 80 | 100 | 70 |
GRAFITO DE BRONCE BUSHINGS-8010080 | 80 | 100 | 80 |
GRAFITO DE BRONCE BUSHINGS-80100100 | 80 | 100 | 100 |
GRAFITO DE BRONCE BUSHINGS-80100120 | 80 | 100 | 120 |
GRAFITO DE BRONCE BUSHINGS-80100140 | 80 | 100 | 140 |
GRAFITO DE BRONCE BUSHINGS-8510060 | 85 | 100 | 60 |
GRAFITO DE BRONCE BUSHINGS-8510080 | 85 | 100 | 80 |
GRAFITO DE BRONCE BUSHINGS-9011050 | 90 | 110 | 50 |
GRAFITO DE BRONCE BUSHINGS-9011060 | 90 | 110 | 60 |
GRAFITO DE BRONCE BUSHINGS-9011080 | 90 | 110 | 80 |
GRAFITO DE BRONCE BUSHINGS-9011090 | 90 | 110 | 90 |
GRAFITO DE BRONCE BUSHINGS-90110100 | 90 | 110 | 100 |
GRAFITO DE BRONCE BUSHINGS-90110120 | 90 | 110 | 120 |
GRAFITO DE BRONCE BUSHINGS-10012050 | 100 | 120 | 50 |
GRAFITO DE BRONCE BUSHINGS-10012060 | 100 | 120 | 60 |
GRAFITO DE BRONCE BUSHINGS-10012070 | 100 | 120 | 70 |
GRAFITO DE BRONCE BUSHINGS-10012080 | 100 | 120 | 80 |
GRAFITO DE BRONCE BUSHINGS-10012090 | 100 | 120 | 90 |
GRAFITO DE BRONCE BUSHINGS-100120100 | 100 | 120 | 100 |
GRAFITO DE BRONCE BUSHINGS-100120120 | 100 | 120 | 120 |
GRAFITO DE BRONCE BUSHINGS-100120140 | 100 | 120 | 140 |
GRAFITO DE BRONCE BUSHINGS-11013050 | 110 | 130 | 50 |
GRAFITO DE BRONCE BUSHINGS-11013070 | 110 | 130 | 70 |
GRAFITO DE BRONCE BUSHINGS-11013080 | 110 | 130 | 80 |
GRAFITO DE BRONCE BUSHINGS-110130100 | 110 | 130 | 100 |
GRAFITO DE BRONCE BUSHINGS-110130120 | 110 | 130 | 120 |
GRAFITO DE BRONCE BUSHINGS-12014070 | 120 | 140 | 70 |
GRAFITO DE BRONCE BUSHINGS-12014080 | 120 | 140 | 80 |
GRAFITO DE BRONCE BUSHINGS-12014090 | 120 | 140 | 90 |
GRAFITO DE BRONCE BUSHINGS-120140100 | 120 | 140 | 100 |
GRAFITO DE BRONCE BUSHINGS-120140120 | 120 | 140 | 120 |
GRAFITO DE BRONCE BUSHINGS-120140140 | 120 | 140 | 140 |
GRAFITO DE BRONCE BUSHINGS-125145100 | 125 | 145 | 100 |
GRAFITO DE BRONCE BUSHINGS-125145120 | 125 | 145 | 120 |
GRAFITO DE BRONCE BUSHINGS-13015080 | 130 | 150 | 80 |
GRAFITO DE BRONCE BUSHINGS-130150100 | 130 | 150 | 100 |
GRAFITO DE BRONCE BUSHINGS-130150130 | 130 | 150 | 130 |
GRAFITO DE BRONCE BUSHINGS-140160100 | 140 | 160 | 100 |
GRAFITO DE BRONCE BUSHINGS-140160140 | 140 | 160 | 140 |
GRAFITO DE BRONCE BUSHINGS-15017080 | 150 | 170 | 80 |
GRAFITO DE BRONCE BUSHINGS-150170100 | 150 | 170 | 100 |
GRAFITO DE BRONCE BUSHINGS-150170150 | 150 | 170 | 150 |
GRAFITO DE BRONCE BUSHINGS-16018080 | 160 | 180 | 80 |
GRAFITO DE BRONCE BUSHINGS-160180100 | 160 | 180 | 100 |
GRAFITO DE BRONCE BUSHINGS-160180150 | 160 | 180 | 150 |
GRAFITO DE BRONCE BUSHINGS-170190100 | 170 | 190 | 100 |
GRAFITO DE BRONCE BUSHINGS-170190150 | 170 | 190 | 150 |
GRAFITO DE BRONCE BUSHINGS-180200100 | 180 | 200 | 100 |
GRAFITO DE BRONCE BUSHINGS-180200150 | 180 | 200 | 150 |
GRAFITO DE BRONCE BUSHINGS-190210100 | 190 | 210 | 100 |
GRAFITO DE BRONCE BUSHINGS-190210150 | 190 | 210 | 150 |
GRAFITO DE BRONCE BUSHINGS-200230150 | 200 | 230 | 150 |
GRAFITO DE BRONCE BUSHINGS-200230200 | 200 | 230 | 200 |
Descripción
Línea Transporte-imperial de bronce bujes (dimensiones del grafito en pulgadas)
El transporte de bronce del grafito es metal apoyado con los bujes de bronce del aceite-menos del grafito de la aleación.
Éstos son transportes compuestos de múltiples capas hechos de un material sinterizado especial usado como superficies de deslizamiento y de un material de acero como metal de la ayuda. Las capas sinterizadas se hacen de una aleación especial del cobre-níquel que contiene un lubricante sólido uniformemente disperso, el componente principal cuyo es el grafito. Los lubricantes sólidos serán lanzados a la superficie del anillo como llevan, que asegurarán un coeficiente de fricción más bajo durante la operación. Además, estas capas sinterizadas fueron tratadas por el tratamiento de la impregnación de aceite.
Características
dispositivo del suministro de petróleo 1.no, agujero de aceite, surco de aceite
El coste del sistema de suministro de combustible, el coste de proceso, montando, y así sucesivamente, puede reducir grandemente el coste de fabricación.
reducción de costes 2.Operation
Reduzca grandemente el uso de los costes de mantenimiento del aceite lubricante y de equipo, pero también exento del riesgo causado por la escasez de aceite.
tiempo 3.design acortado
Ningún aceite puede hacer el diseño, estructura se simplifica, reduce grandemente costes, ahorra tiempo de diseño. Además, usando los transportes autolubricadores puede también mejorar las propiedades mecánicas y prolongarlas para conseguir resultados notables usando vida y para mejorar la confiabilidad.
4.recovery y protección del medio ambiente del lubricante
No hay necesidad al residuo que recicla, conducente a la protección del medio ambiente.
Utilice las notas
el 1.In el caso posible, el diseño utiliza la especificación estándar lo más lejos posible;
nota 2.Please que no hay cuerpo extraño en la asamblea;
3.After usando la superficie de deslizamiento, formada por la película sólida del aceite lubricante en superficie con fenómeno negro negro o gris, no friegan por favor, como de costumbre.
4.Before la asamblea, si el aceite lubricante aplicado a las piezas de pulido, puede acortar el funcionamiento en el período, conducente a la operación de la maquinaria, operación;
5.When que la asamblea debe ser presionada lentamente en, él se prohíbe estrictamente para batir, para evitar daño a los transportes y a la deformación de bronce del grafito;
6.Design, diversas piezas se debe seleccionar con el material apropiado, para mejorar el funcionamiento mecánico, para ampliar la vida de servicio de los transportes de bronce del grafito;
los 7.In la alta carga, movimiento de intercambio, el uso propuesto de la fijación del tornillo;
agua dulce de los 8.In, agua de mar y en el mar, en el uso de la galjanoplastia del acero inoxidable o de la superficie.
Característica
1. Diseño flexible, simple, conveniente con usos amplios
2. FunctionaI en la ausencia de aceite
3. Eficacia económica
4. Excelente rendimiento bajo alta carga y circunstancias de poca velocidad
5. En circunstancias donde está difícil generar las hola-películas, tales como intercambio de los movimientos de los movimientos, de la rotación y de encendido-apagado frecuente, los transportes de bronce del grafito destacan su resistencia de abrasión excelente.
6. Resistencia química excelente y resistencia a la corrosión
Especificaciones
Material |
Bronce bajo |
CuZn25Al6Fe3Mn3 |
SL2 |
Lubricante sólido del grafito |
|
Densidad |
|
8.2g/cm3 |
Resistencia a la tensión |
|
>=755N/mm2 |
tenacidad Anti-compacta |
|
>=400~500KJ/m3 |
Dureza |
|
>=200HB |
Presión de Max Load |
|
100N/mm2/120N/mm2 (500SP120) |
Límite de velocidad |
|
0.5m/s |
Límite del valor del picovoltio |
|
1.65N/mm2.m/s |
Coef de la fricción |
Lubricación del aceite |
0,03 |
Fricción seca |
0,16 |
|
Temperatura de trabajo |
|
-50~+300°C |
Campo del uso
·Hardware
·fabricación de acero
·el estampador troquel
·herramientas de la industria del automóvil
·Sellado
·otros
Los transportes de bronce del grafito son ampliamente utilizados en altos usos de la carga donde baje la fricción y se requiere la buena resistencia de desgaste y donde está difícil la lubricación. Algunos ejemplos incluyen las placas del desgaste para los automóviles, robots industriales, llevan las placas para los bujes de la inyección, del perno de la inyección y los bujes autolubricadores para el material de construcción.
Llevar el tipo
·Buje de la guía
·accesorio
·mitad que lleva el arbusto
·Placa del desgaste
·junta
·placa de guía
·Otros
Cree para requisitos particulares
Toda clase de elementos de desplazamiento se pueden suministrar o producir a petición.
Éntrenos en contacto con por favor para más información.
